sCOLOR control 1 for one dosing module
SKU
8500218
sCOLOR control 1 for one dosing module
Attention: No adapter type J (Swiss plug) included.
You will find a suitable plug here:
Adapter CH CEE7 on T12
Show plug
Prices Available After Login - Please sign in
To view prices and place orders, please log in with your customer account.
Don’t have an account yet?
Create your personal customer account quickly and easily:
- Create an account
- We will review your details within 2 business days
- You will receive an email notification once your account is activated or if we have any questions
- After activation, you’ll have full access to product prices and all shop features
Questions about a product, motan, or the online shop?
- Phone: +49 7531 8178 – 0
- Available: Monday to Friday, 9:00 AM – 5:00 PM (CET)
- Email: shop@motan.com
You want to know more about us and our products?
Visit our homepage:

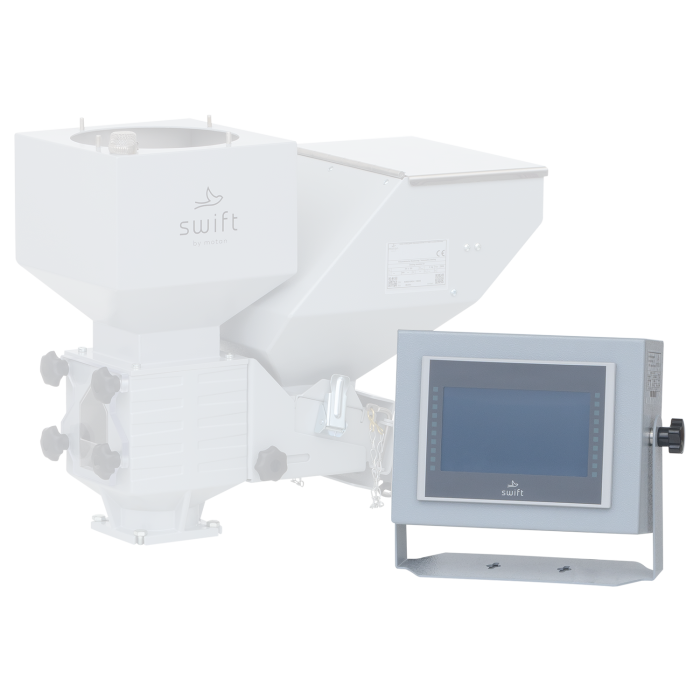

Microprocessor control for a sCOLOR V volumetric additive dosing unit with one dosing module.
- Easy to operate 7'' colour graphic display with touch screen
- Throughput monitoring with report function
- The operating language can be selected
- Automatic adjustment of the dosing time to the plasticization time of the processing machine
- Injection moulding and extrusion operating modes
- Recipe function with max. 10 recipes.
Activation of the dosing module via a potential free contact (external contact) from the processing machine.
- External contact / pilot signal cable l= 5m
Supplied with shielded power cable to dosing motor l=3m
Power supply: 1/N/PE 230V/50Hz and 120V/60Hz with Cable length l=5m and euro plug
Connected load: max. 120W
Control voltage: 24VDC
Alarm output: potential free contact (in the control)
Analogue input: 0 - 10VDC (external, cable l=5m)
Colour of housing: RAL 7040 (grey)
- Easy to operate 7'' colour graphic display with touch screen
- Throughput monitoring with report function
- The operating language can be selected
- Automatic adjustment of the dosing time to the plasticization time of the processing machine
- Injection moulding and extrusion operating modes
- Recipe function with max. 10 recipes.
Activation of the dosing module via a potential free contact (external contact) from the processing machine.
- External contact / pilot signal cable l= 5m
Supplied with shielded power cable to dosing motor l=3m
Power supply: 1/N/PE 230V/50Hz and 120V/60Hz with Cable length l=5m and euro plug
Connected load: max. 120W
Control voltage: 24VDC
Alarm output: potential free contact (in the control)
Analogue input: 0 - 10VDC (external, cable l=5m)
Colour of housing: RAL 7040 (grey)
| SKU | 8500218 |
|---|---|
| Product group | motan swift |
| Weight | 4.000 |
| Length (Meter) | 0.300 |
| Width (Meter) | 0.250 |
| Height (Meter) | 0.130 |
| Volume (m3) | 0.00980 |
