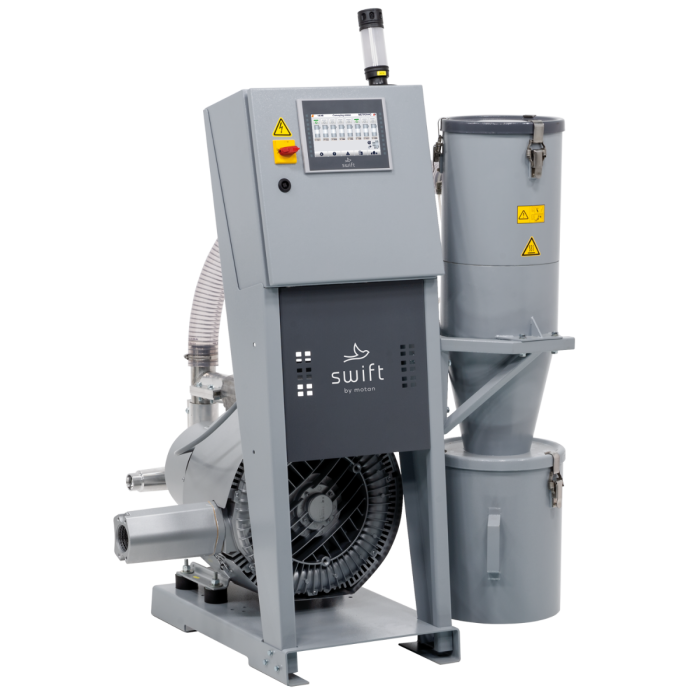

sCONVAC 4,6/CF7 Blower station

Control cabinet with control panel for control of
- max. 12 material loaders
- max. 8 purging valves or 8 sCONMIX
- cyclone dust filter 7 m3/min
- bypass valve
Incl. frame for ground installation.

Rated output: 4.7 kW & 5.4 kW
Rated voltage: 3/N/PE 400V & 3/N/PE 480V
Rated frequency: 50 Hz & 60 Hz
Control voltage: 24V DC
Compressed air: 5 - 7 bar, oil and water-free
Blower noise level: 73/75 dB(A) at 50/60 Hz according to DIN EN ISO 3744
