sCONVEY HOS 05
SKU
8500600
sCONVEY HOS 05

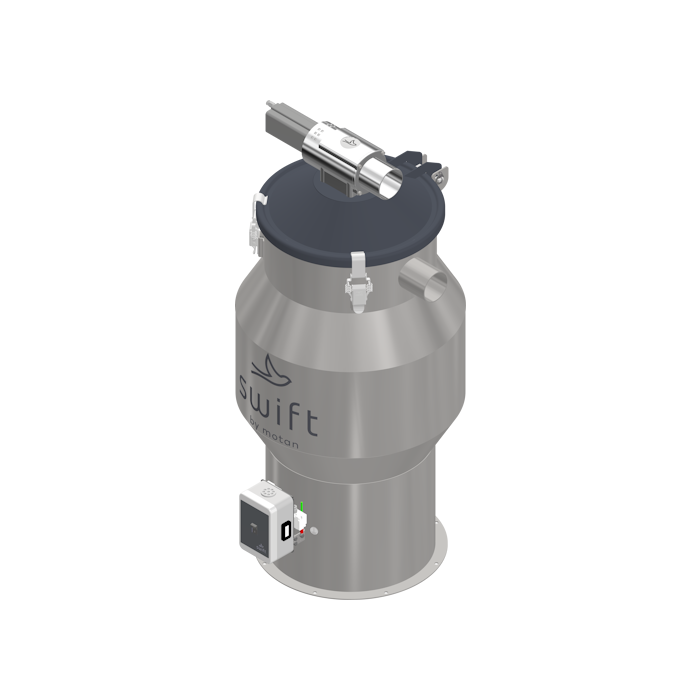

Material hopper loader with stainless steel body for the conveying of granulate, with implosion valve and O control box.
For mounting on a material hopper or bin with automatic filter cleaning by implosion. Automatic material demand via discharge flap and proximity switch. Control box with ON/OFF switch and sCONMIX proportioning valve connection.
Hopper volume: 5l
Vacuum connection: Ø 50mm
Material connection: Ø 50mm
Compressed air: 5-7bar, oil and water-free
Control voltage: 24V DC
For mounting on a material hopper or bin with automatic filter cleaning by implosion. Automatic material demand via discharge flap and proximity switch. Control box with ON/OFF switch and sCONMIX proportioning valve connection.
Hopper volume: 5l
Vacuum connection: Ø 50mm
Material connection: Ø 50mm
Compressed air: 5-7bar, oil and water-free
Control voltage: 24V DC
| SKU | 8500600 |
|---|---|
| Weight | 7.000 |
| Length (Meter) | 0.372 |
| Width (Meter) | 0.333 |
| Height (Meter) | 0.531 |
| Volume (m3) | 0.06580 |
