sCONVEY HOS 50
SKU
8500603
sCONVEY HOS 50

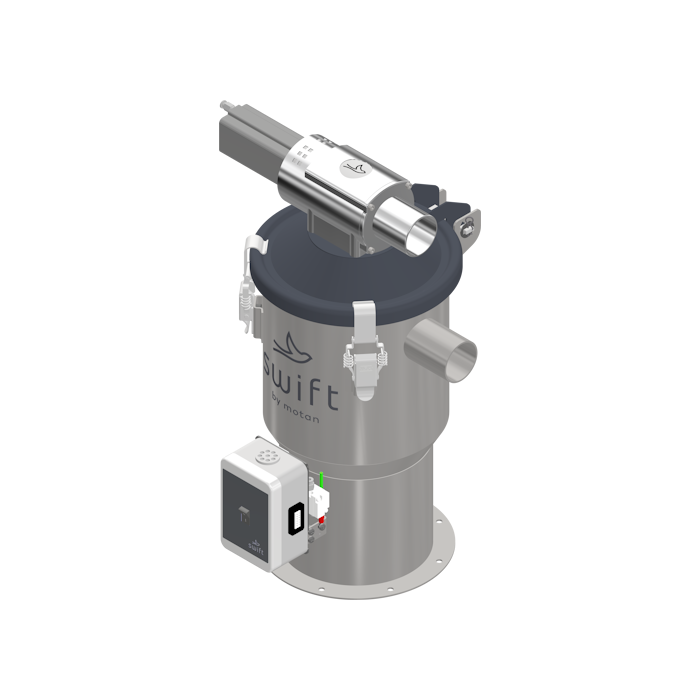

System hopper loader with stainless steel body for the conveying of granulate, with implosion valve and O control box.
For mounting on a material hopper or bin with automatic filter cleaning by implosion. Automatic material demand via discharge flap and proximity switch. Control box with ON/OFF switch and sCONMIX proportioning valve connection.
Hopper volume: 50l
Vacuum connection: Ø 60mm
Material connection: Ø 60mm
Compressed air: 5-7bar, oil and water-free
Control voltage: 24V DC
For mounting on a material hopper or bin with automatic filter cleaning by implosion. Automatic material demand via discharge flap and proximity switch. Control box with ON/OFF switch and sCONMIX proportioning valve connection.
Hopper volume: 50l
Vacuum connection: Ø 60mm
Material connection: Ø 60mm
Compressed air: 5-7bar, oil and water-free
Control voltage: 24V DC
| SKU | 8500603 |
|---|---|
| Weight | 14.000 |
| Length (Meter) | 0.422 |
| Width (Meter) | 0.457 |
| Height (Meter) | 0.873 |
| Volume (m3) | 0.16840 |
